Products

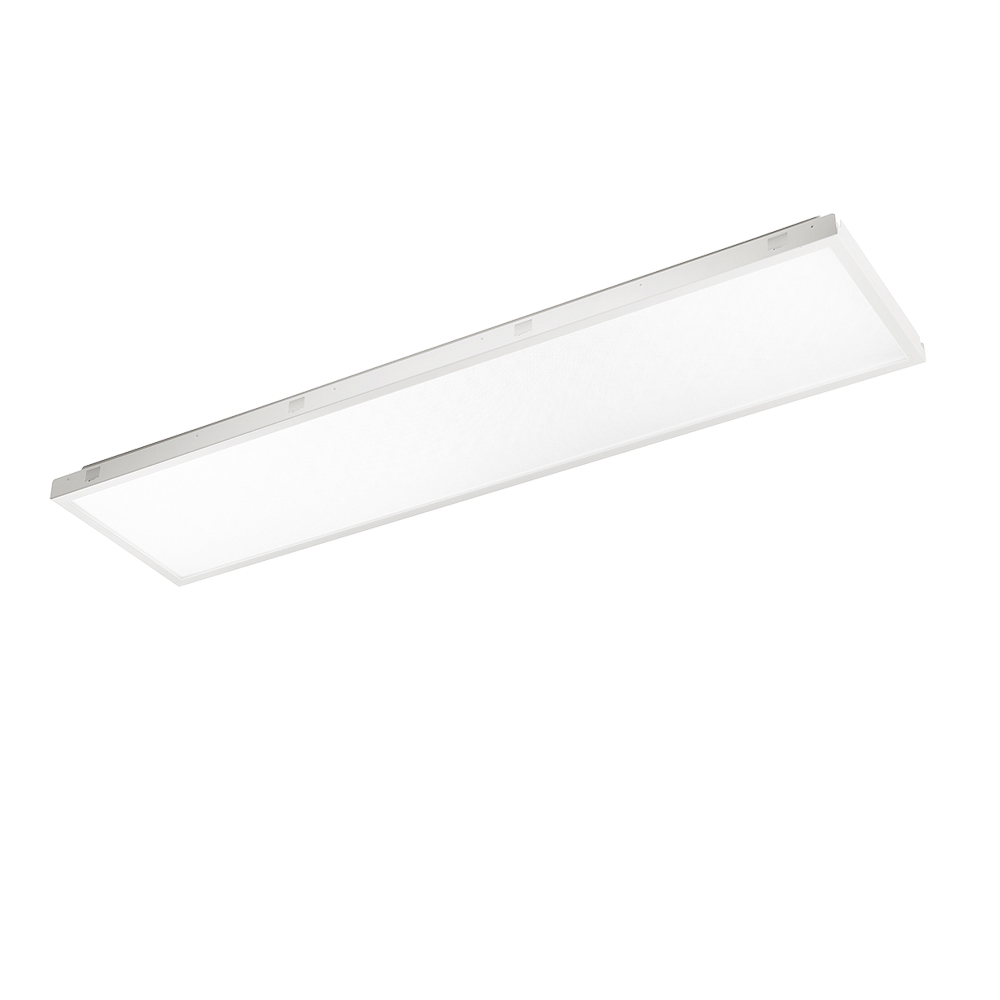

Manet 300x1200
Recessed/clip-in

Material
Metal frame / Clear prismatic diffuser
Color
White
LED characteristics
MID Power
Type of cooling
Passive
LED number
210
Operating ambient temperature
-20°C +45°C
CRI
> 90
UGR
<19
Life time
L70 B50 >54.000 h.
Optics
Prismatic
Power supply
220-240V AC
Power factor
> 0.9
Total absorbed power
40W
IP
IP40
IK
08
Class
Class II
Dimensions

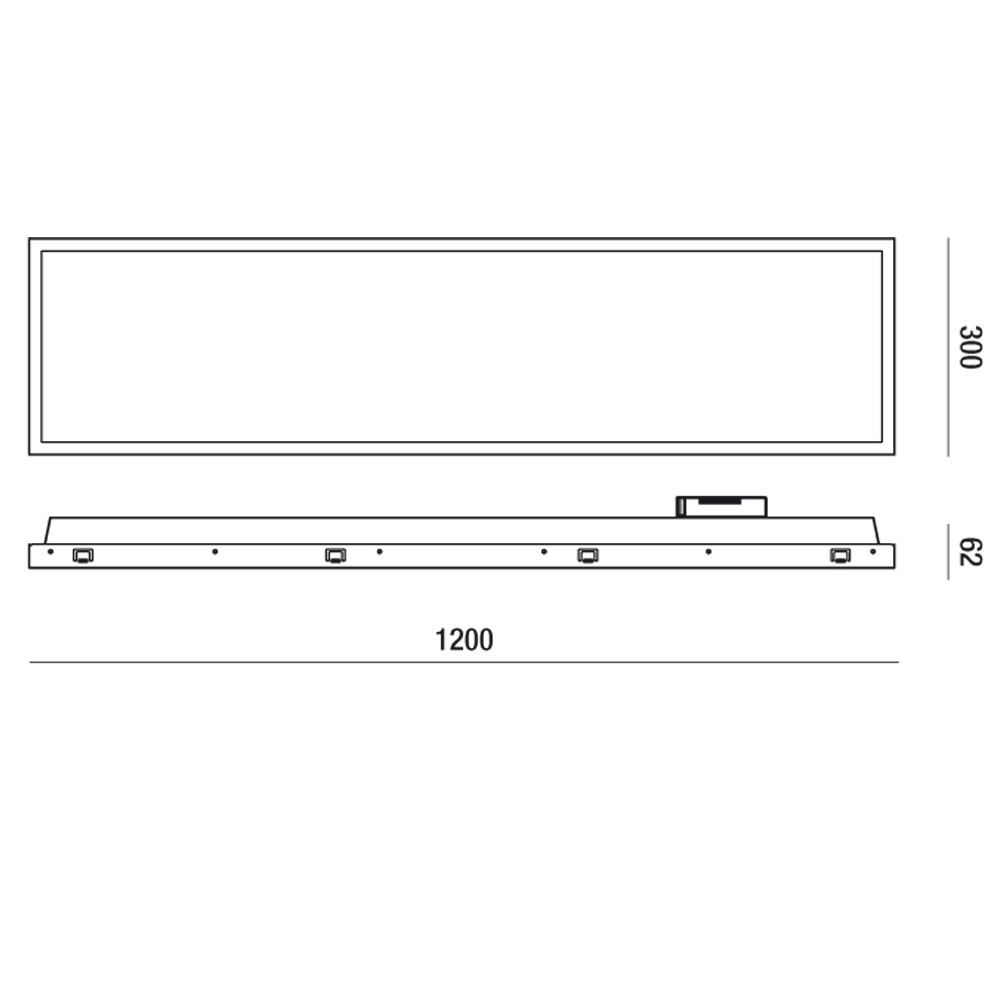

H: 62 W: 300 D: 1200 mm.
Box dimensions
H: 90 W: 1122 D: 370 mm.
Net weight
3,20 Kg.
Gross weight
4,20 Kg.
Warranty type
Warranty A
Driver
Driver Included
Designer
S.T. Fabas Luce

Warm White 3000K

6988-02-715
CLASSE E
  • Power pack type: ON/OFF
  • Lumen LED source: 5100 lm
6988-02-755
CLASSE E
  • Power pack type: DALI/Push
  • Lumen LED source: 5100 lm
6988-02-765
CLASSE E
  • Power pack type: 0-10V
  • Lumen LED source: 5100 lm

Natural White 4000K

6988-04-715
CLASSE D
  • Power pack type: ON/OFF
  • Lumen LED source: 5500 lm
6988-04-755
CLASSE D
  • Power pack type: DALI/Push
  • Lumen LED source: 5500 lm
6988-04-765
CLASSE D
  • Power pack type: 0-10V
  • Lumen LED source: 5500 lm
info Direct emission ceiling lamp for recessed installation, stand-in or ceiling-mounted with special accessory. Optical compartment in painted metal, UGR<19 microprismatic shield, Mid power LED 40W high yield CRI 90. White finish, Warm and Natural White. Electronic power supply on/off or dimmable DALI included. Emergency kit on demand. Perfect for lighting offices, open spaces and for general lighting in large areas.
